FIELD DATA COLLECTION

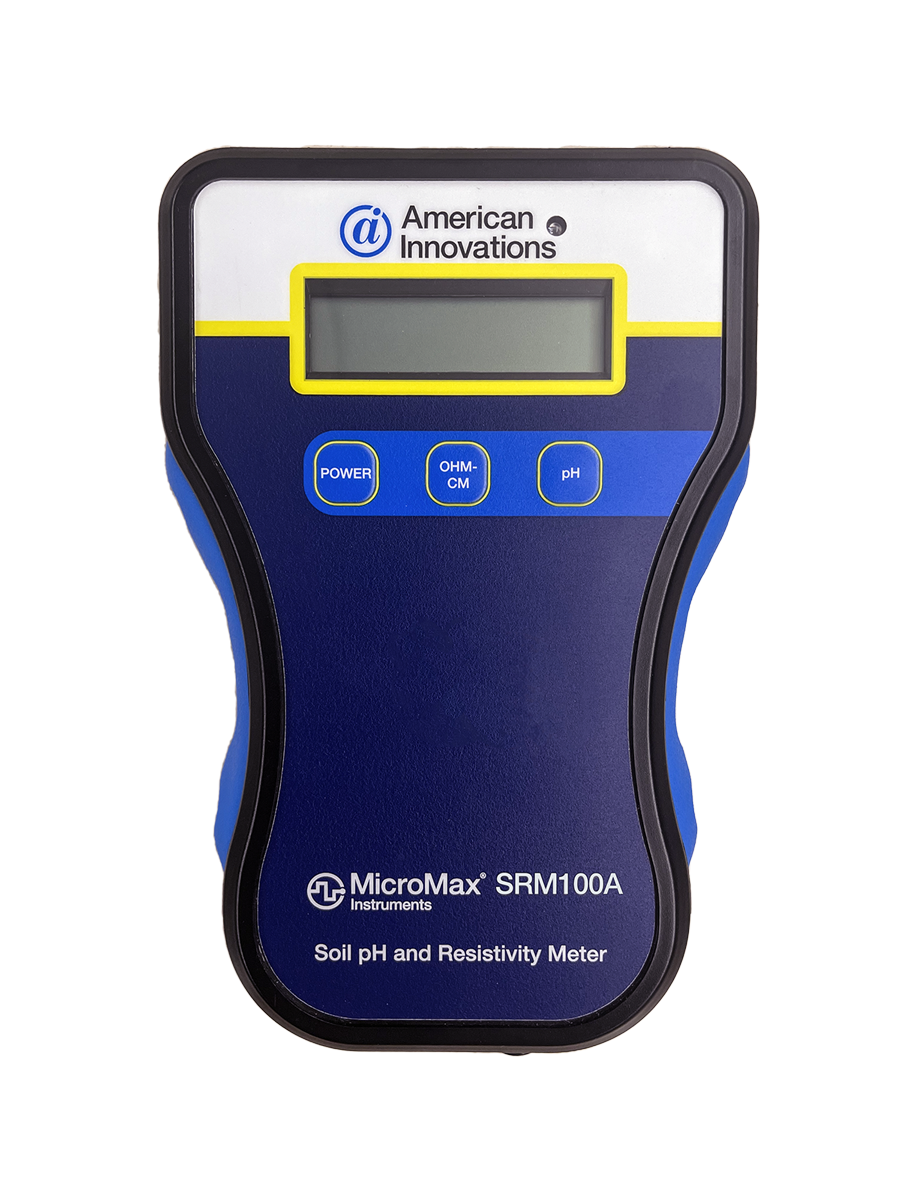

MicroMax SRM100A Soil Resistivity and pH Meter
Portable Soil Resistivity and pH Meter for ECDA surveys
Capture Soil Resistivity and pH with a Single Probe
Why Choose the SRM100A
The SRM100A is back and better than ever! Providing fast and accurate soil resistivity and pH measurements in a portable package, the SRM100A is designed with “fast and accurate” in mind.
Featuring a redesigned 4-pin probe connector and a new rechargeable battery power supply, the SRM100A is more reliable and more convenient than ever.
Work Faster and More Efficiently
Say goodbye to the time-consuming process of AC tower pylon inspections and ECDA surveys. The SRM100A can help you complete assessments in a fraction of the time. With traditional four-pin readings taking up to 20 minutes each, the SRM100A offers a streamlined solution by measuring soil pH and resistivity simultaneously in less than two minutes.
Improve Accuracy & Lower Costs
Upgrade to the SRM100A and improve the reliability and accuracy of your measurements with its advanced single-probe configuration. This technology eliminates errors caused by miscalculations or incorrect probe spacing and depth, ensuring precise and dependable results every time. The streamlined design of the SRM100A also helps lower costs by reducing equipment setup time during groundbed installations, allowing your crews to focus on completing the job quickly and efficiently.
SRM100A Specifications
Dimensions:
7.5” x 4.75” x 2.25”
Weight:
2.5 lbs without probe(s)
Construction and Environmental Protection:
ABS high-impact plastic, corrosion proof, sealed to NEMA4/IP64
Resistivity Range:/
0 to 1.5M ohm-cm
Resistivity Accuracy:
+/- 5% of the reading
pH Range:
3 to 10 standard units
pH Accuracy:
+/- 0.5 standard units
Display:
Liquid crystal, 2 lines of 16 characters
Switches:
NEMA4/IP64 sealed toggle switches
Power Supply:
Rechargeable Battery
Ambient Operating Temperature:
-15° C to 60° C
Ambient Operating Humidity:
0 to 100% non-condensing
