REL2510 Solid-State Relay
2023 MP Corrosion Innovation of the Year Award Winner
Compact. Durable. Best in Class.
- Interrupts Low Voltage Output Rectifiers
- Supports Fast Cycle Interruption
- Industry-Leading Surge Protection
- Quick and Easy Installation
- Weather-Sealed Construction
- Powered Off From Secondary Rectifier Taps
- Magnetic Mounting

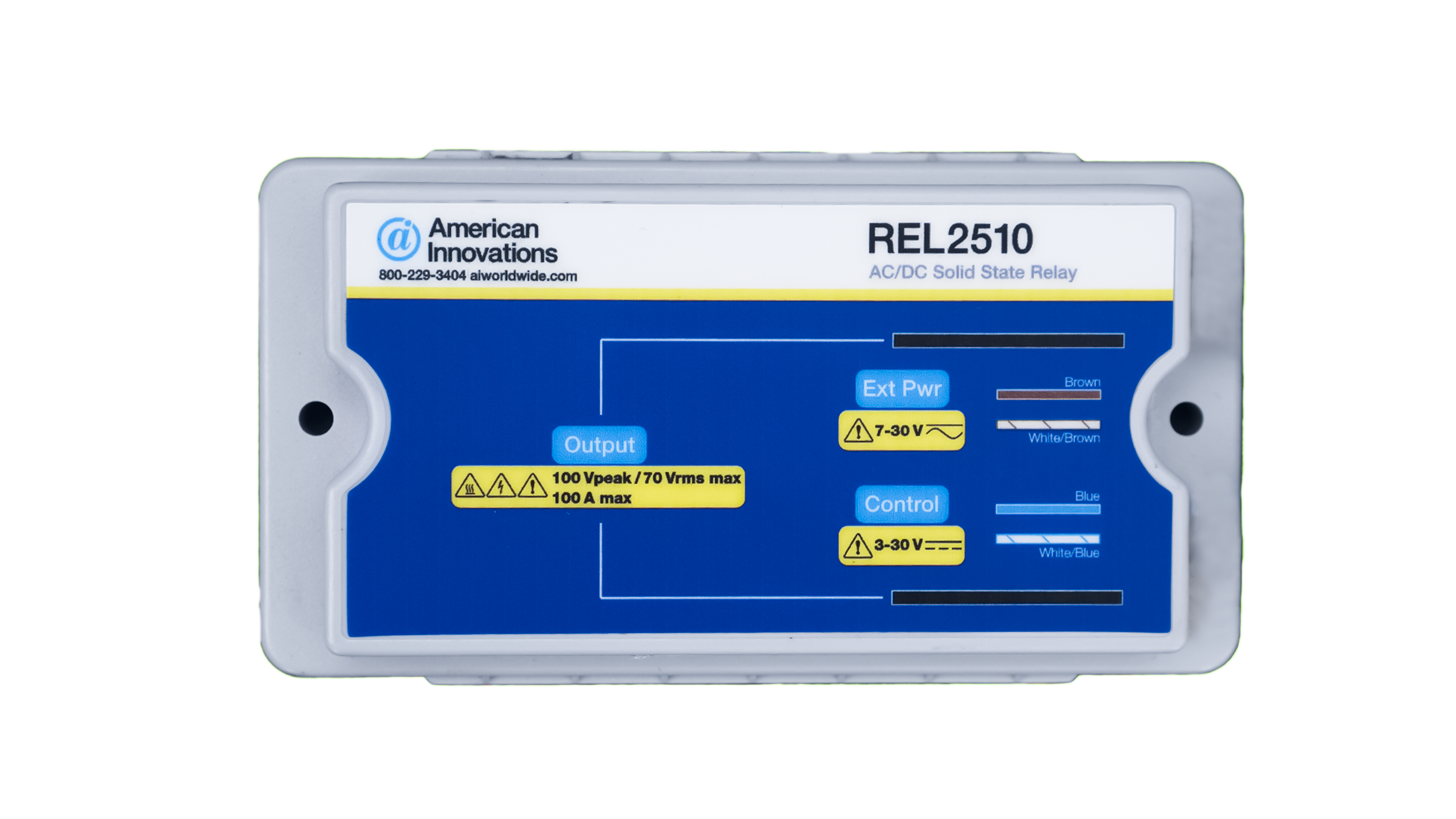

Award-Winning Innovation: The REL2510 Solid-State Relay

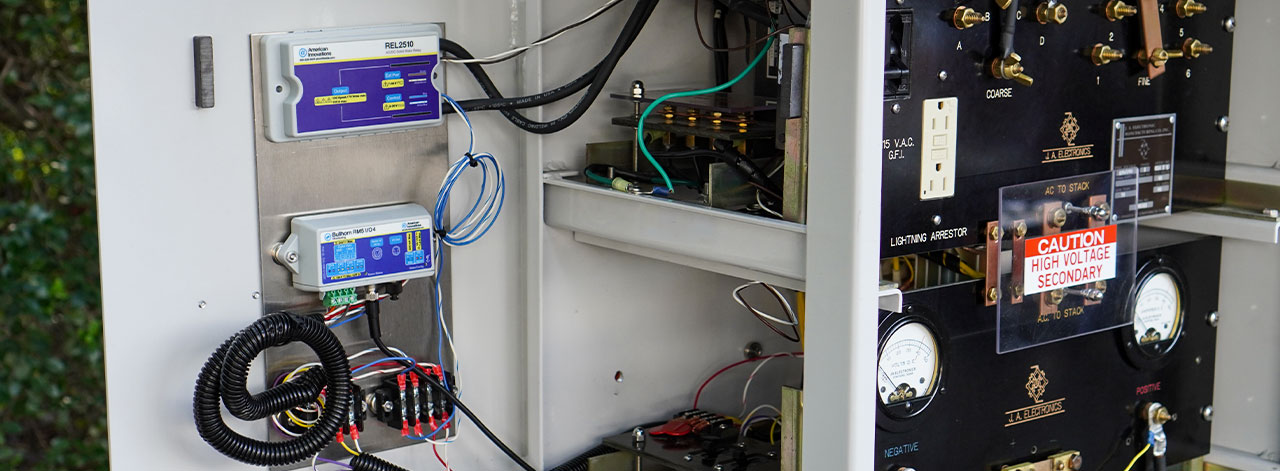

Part of the Bullhorn RM5 remote monitoring platform, the REL2510 Solid-State Relay features a compact, durable design with best-in-class surge protection that offers superior protection of your system against damaging electrical surges. This normally closed solid-state relay interrupts low-voltage AC secondary signals and is suitable for interrupting up to 100V peak and 100A. It can be easily installed in tight areas due to its small size, and its weather-sealed construction provides outstanding protection against the elements and high-energy surges.
Technical Specifications
Type
Normally Closed, External Power
Max Current Load
100A
Operating Voltage
0.5V-100V
Control Input
3-30Vdc
Power Input
7-30Vdc or 7-30Vac
Dimensions
2.98” x 5.5” x 0.84”
Surge Protection
Yes
Operating Temperature
-30° C to +70° C
Max Voltage Drop @100A
0.4V
Derating
100% at < 45° C; 70% at
60° C
Mounting
Magnet or screw: must be attached to a metal surface.
