Fewer trips. Faster stops. Better compliance.
Why Choose Bullhorn RM5 Test Point Monitors
Powerful, Compact, and Cost-Effective. Elevate Your Pipeline Test Station CP Monitoring with the Bullhorn RM540 Test Point Monitor
- AC/DC pipe-to-soil measurements
- Interrupt-Aware instant-off measurements
- Single structure input
- Dual reference cell inputs
- 10-year battery life with field-replaceable battery
- Small and discrete form factor
- Wireless configuration via iOS/Android app or Bullhorn Web
- AT&T LTE cellular or Iridium satellite connectivity options
- Configurable alarms and alerts
- Compatible with Triton Test Stations
THE NEXT-GEN BULLHORN RM5 RMUS

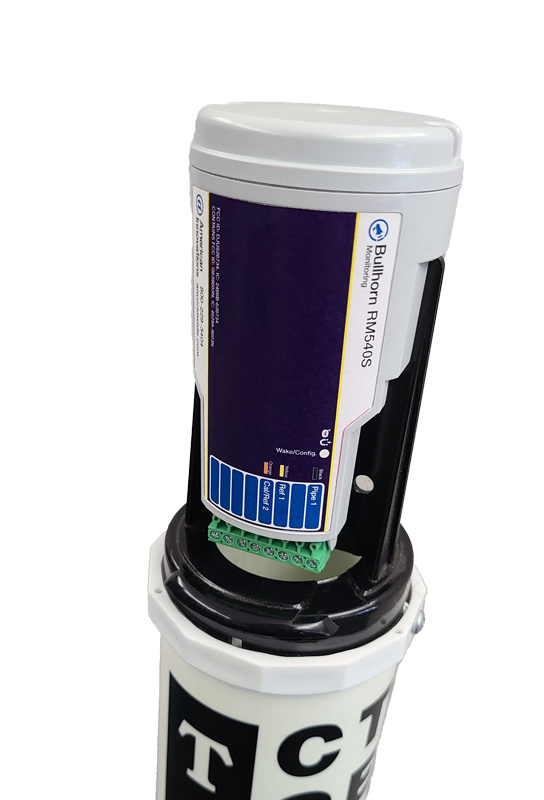

Part of the Bullhorn RM5 series of remote monitors, the RM540 Test Point Remote Monitor is a cost-effective test point remote monitoring unit specifically designed for the cathodic protection of pipelines. Boasting a quick and easy setup, a remarkable 10-year battery life, and flexible communication options, it will revolutionize your pipeline monitoring.
PRECISE DATA: ANYWHERE, ANYTIME
The RM540 is engineered for seamless installation even in remote and hard-to-reach areas, ensuring accurate data collection exactly where you need it. Its compact and discreet design effortlessly fits under the cap of a standard test station. Plus, the Interrupt-Aware feature guarantees precise OFF potential readings for enhanced monitoring capabilities.
The RM540 is engineered for seamless installation even in remote and hard-to-reach areas, ensuring accurate data collection exactly where you need it. Its compact and discreet design effortlessly fits under the cap of a standard test station. Plus, the Interrupt-Aware feature guarantees precise OFF
potential readings for enhanced monitoring capabilities. Enjoy 5 years of data included with your purchase of the RM540C.
SEAMLESSLY CONNECTED FIELD AND OFFICE
Customizable sampling, reporting, and alarm parameters get you the exact data you need, on the schedule you want. The RM540 integrates seamlessly with Bullhorn Web, PCS, and other American Innovations solutions to accelerate workflows throughout your organization.
RM540 Technical Specifications
| Inputs | Dimensions | ||
| Channels: | 2 analog channels | RM540 | 3.05″ D X 5.07″ H |
| Max DC Voltage: | ±30 Vdc | ||
| Max AC Voltage: | 20 V | Environmental Specs | |
| Accuracy: | +/- 2% of range (AC or DC) | Temperature: | -30° C to +60° C |
| Input Impedance: | 20 MΩ | Humidity: | 0-95% |
| Channel-to-Channel Isolation: | 200 V (DC or AC) | Certifications | |
| Surge Immunity: | The RM5 system survives 8kV peak-to-peak, 300ms transients. Includes full 3-year warranty. | FCC | |
| Power | Industry Canada | ||
| Power Source: | Field-replaceable, non-rechargeable 1.5V AA lithium batteries (x4) | ||
| Communications | |||
| Cell Network (RM540C): | AT&T LTE | ||
| Satellite Network (RM540S): | Iridium | ||
| GPS: | GPS Network, accurate to 5m |
