The Allegro AX—Your Tried And True Solution for Cathodic Protection Survey Data Collection

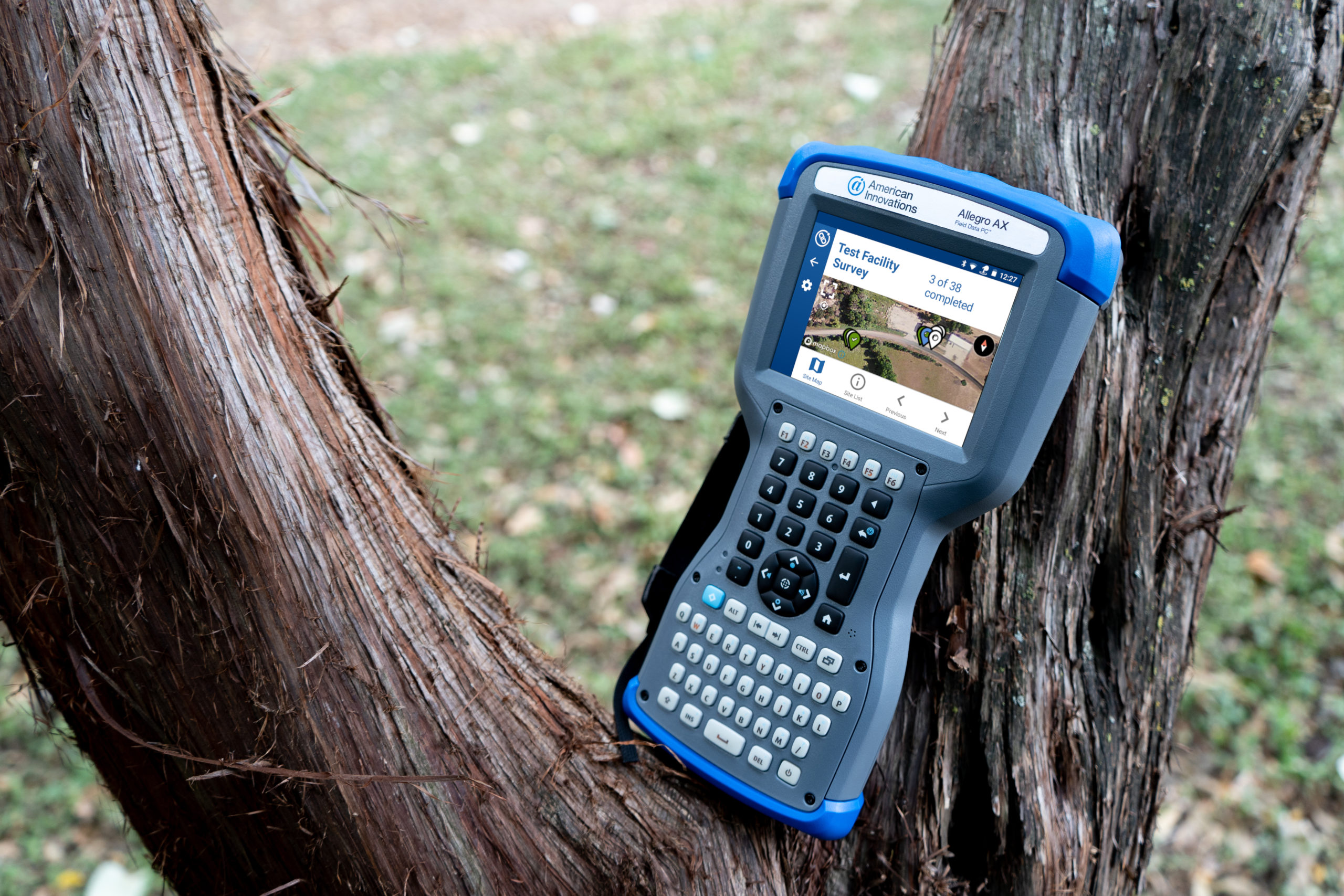

The Allegro AX is a rugged android Field Data PC that works with PCS Field Data Collector software to collect your periodic and close interval survey data.
Mapping Capability – Quickly see the sites already surveyed, and where you need to survey next.
Increase Operational Efficiency – The Allegro AX’s Android OS and quad-core processor deliver fast performance. In addition, PCS Field Data Collector software works with your Allegro AX to streamline your survey workflow
Powerful Integrated Package – The Allegro AX features an integrated alphanumeric keyboard is ideal for rapid data entry, and a high-visibility screen you can view in direct sunlight. Your digital voltmeter (DVM) slots into the back of the Allegro AX, so you do not need to keep track of multiple components when you go out to the field.
Ultra-Rugged – Meeting IP68 and MIL-STD-810G ratings, the Allegro AX is designed to work in the most extreme conditions. So rain, extreme temperatures, or dust will not get in the way of your productivity.
DVM for the Cathodic Protection Industry – The Allegro AX fully integrates with our digital voltmeter, DVM1110. The DVM 1110 is built on our patented technology to ensure highly accurate measurements in less-than-optimal cathodic protection environments
Allegro AX Specifications
| PROCESSOR | PORTS |
| – 1.2GHz quad-core ARM Cortex A9 i.MX6 | – 12V DC power input jack |
| OPERATING SYSTEM AND SOFTWARE | – USB-C, USB 3.1OTG no battery charging x 1 |
| – Android 7.1 (AOSP) | – Optional RS-232 9-Pin D-Sub connector with 5V DC or 12V DC power output |
| MEMORY | – Dock connector (Pwr, USB 2.0, & HDMI) |
| – 2 GB RAM | BATTERY |
| – 16 GB flash storage | – Intelligent Li-Ion battery 3.6VDC @ 12000 mAh, 43.2 Whr |
| – User-accessible micro SD/SDXC slot | – Operates up to 20 hours on one charge |
| WIRELESS CONNECTIVITY | – Charges in 5.5 hours typical |
| – Bluetooth® wireless technology, 4.2 BR/BDR/BLE “Smart Ready”, Class 1.5, range greater than 100 feet (30 m) | – Battery easily changeable in the field |
| – Wi-Fi® 802.11b/g/n | – Optimized for performance in cold temperatures |
| DISPLAY | PHYSICAL |
| – Active viewing area: 4.2 inch (107 mm) | – Size, Standard models: 5.4” w x 10.2” l x 1.6” d (138 mm x 256 mm x 40 mm) |
| – VGA LCD TFT (640 x 480) landscape display | – Weight: 2 lbs (908 g), with battery |
| – High-visibility backlit LCD | – Durable hardened plastic in a shear-proof and shock-resistant design |
| TOUCHSCREEN | – Strong chemical resistance |
| – Projected capacitive touch interface | – Comfortable, wide hand strap |
| – Active viewing area: 7” (178 mm) | – Easy-to-grip, impact-absorbing bumpers |
| – Resolution: WXGA (1280 x 800) | CAMERA |
| – High-visibility backlit LCD for best-in-class sunlight view-ability | – 5 MP resolution with autofocus and LED illuminator + video\ capture |
| – Portrait or landscape orientation with automatic screen rotation | GPS/GNSS |
| TOUCHSCREEN | – High-sensitivity GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS receiver |
| – Projected capacitive touch interface | – Accuracy: SBAS 2 meters; autonomous 5 meters |
| – Chemically-strengthened glass | – Concurrent GNSS constellation resolution |
| – Scratch-resistant screen | – NMEA-0183 ver. 4.0 out |
| ENVIRONMENTAL | – 72-channel u-blox M8 engine |
| – IP68 waterproof & dustproof–Water: 1.4 m for 30 minutes | CERTIFICATIONS AND STANDARDS |
| – Operating temperature: –22° F to 140° F (–30° C to 60° C) | – FCC Class B, CE Marking, Industry Canada |
| – Storage temperature: –22° F to 158° F (–30 C° to 70° C) | – EN62368 Safety, RoHS 2 Compliant |
| – Shockproof: multiple drops from 4′ (1.22 m) onto concrete | STANDARD ACCESSORIES |
| – Designed to meet MIL-STD-810G test procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock | – FCC Class B, CE Marking, Industry Canada – EN60950/EN62368 Safety |
| DVM SPECIFICATIONS Working Voltage (DC): 250 V max. on primary input | 500 mV max. on shunt input* Working Voltage (AC): 175 V max. on primary input | 350 mV max. on shunt input* Input Impedance: 100 MΩ on primary input | 100 kΩ on shunt input* Measurement Category: CAT II 250V GPS: Internal GNSS (GPS, GLONASS, Galileo, BeiDou) |
