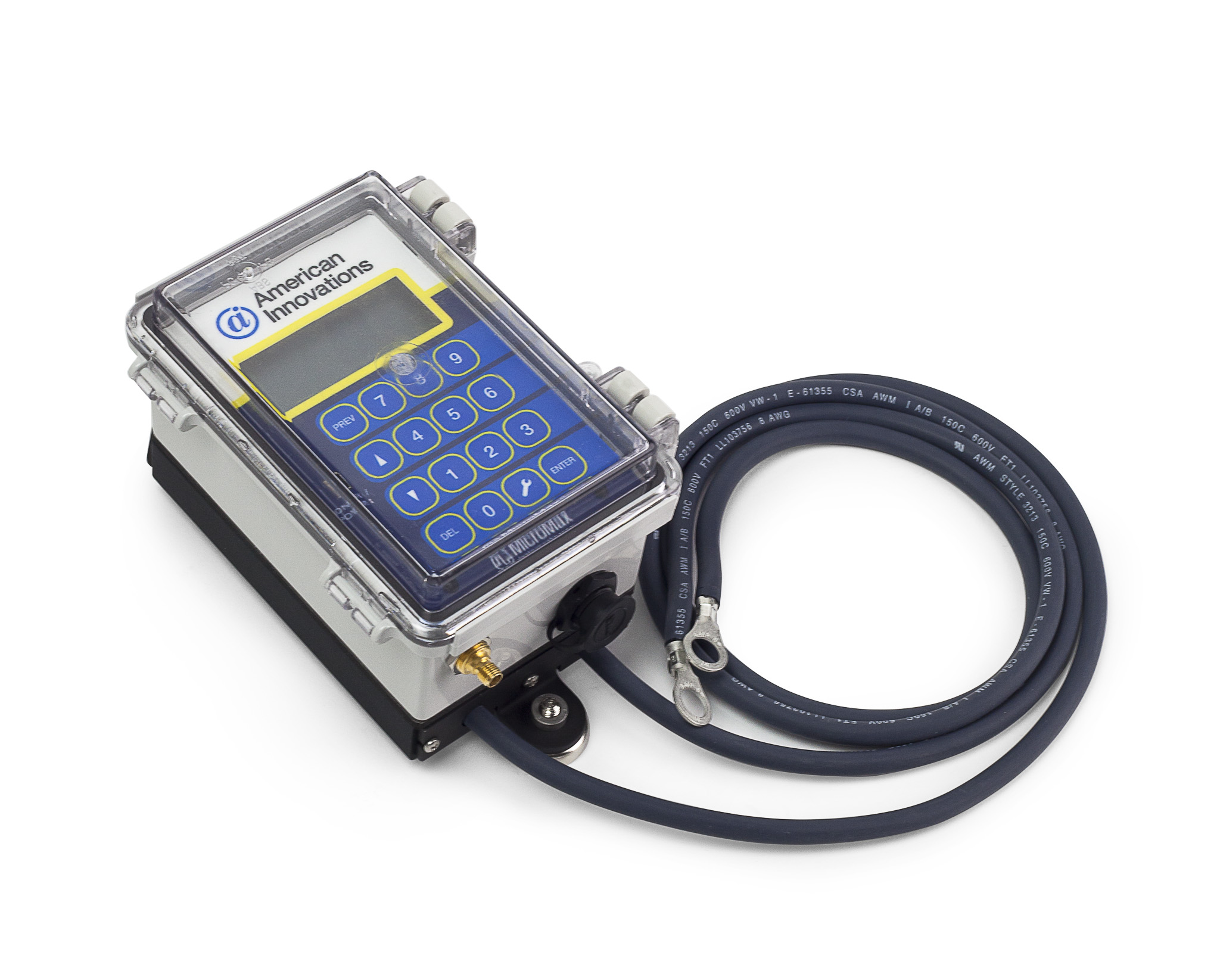

The GPS360 is a rugged current interrupter featuring a built-in keypad and LCD display. Designed to fit inside most rectifier cabinets, it’s fully programmable and offers synchronized current interruption designed specifically for cathodic protection surveys in a portable package.
GPS360 Specifications
| Input Power | Start Phase |
| 10 – 60 V DC or 8 – 42 V AC | ON/OFF |
| GPS Synchronization | Enclosure |
| Yes | Fully waterproof case with see-through cover. |
| Interruption Cycle | Display |
| Range: 0.1 – 999.9s | LCD Display |
| Increments: 100 ms | Operating Temperature |
| Relay Drive Capacity | -30 °C to +70 °C |
| 0.5A | Weight |
| Number of Programmable Schedules | 3 lbs. 1 oz. (1.39 kg) |
| 9 | Dimensions |
| Integrated Battery | 8.0” x 4.5” x 4” (with magnets attached) |
| Operating time: 60 hours | Integrated Solid-State Relay |
| Charging time: 8 hours (USB, 12V DC) | Load Voltage: 100 V Peak DC, 70 V Peak AC |
| Charging suspension temperature: -10° C | Load Current: See derating table below |
