Why Choose the DVM2130

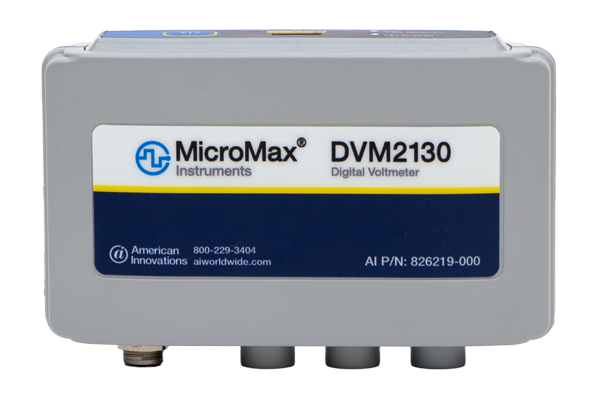

The DVM2130 is a purpose-built, rugged digital voltmeter that seamlessly integrates with our field data collection mobile app, PCS Field Data Collector. With a patented circuit design, the DVM2130 ensures accurate, consistent measurements for your CP system debugging and survey needs even in the presence of high voltage interference.
The DVM2130 also includes:
- Integrated GPS receiver for synchronization and timestamping of measurements
- Bluetooth connectivity for flexible integration with mobile devices
- Rechargeable lithium-ion battery for continuous operation throughout your workday
DVM Specifications
| Dimensions: | GPS: |
| 2.94” W x 4.44” L x 1.50” H | Internal GNSS (GPS, GLONASS, Galileo, BeiDou) |
| Weight: | Connectivity: |
| 4.8 oz | USB-C, Bluetooth v5 |
| Working Voltage (DC): | Battery: |
| 250 V max. on primary input | 500 mV max. on shunt input* | Rechargeable Li-Ion via USB-C, 10-hour battery life |
| Working Voltage (AC): | |
| 175 V max. on primary input | 350 mV max. on shunt input* | |
| Input Impedance: | |
| 100 MΩ on primary input | 100 kΩ on shunt input* | |
| Measurement Category: | |
| CAT II 250V | |
| *This input has a range and impedance specially designed for measuring shunts more accurately |
